Swimming Pool & Spa Tile

Tile Materials

Porcelain tiles and glass tiles are the only two types of materials that should be used. Porcelain is a higher-end, more durable, and water-resistant version of ceramic.

Tile Shapes

Tile Materials

Flat (a.k.a. Field)
Bullnose
Mudcap
Beveled

Tile Sizes

Tile Materials

Waterline Tile

6" x 6"
3" x 3"
2" x 6"
1" x 2"
1" x 1"

Waterline Tile

Gutterline Tile a.k.a. Gutter Lip Tile or Gutter Trim Tile

Waterline Tile

Waterline Tile is a band or bands of tile, with each band being typically 6-inches of height, that runs along the perimeter of a swimming pool and is located right beneath the coping ("Flat") or located curving over ("Bullnose") to meet the deck. Waterline Tile helps to prevent the buildup of sunscreen, body oils, other contaminants and discoloration along the pool's edge. It helps to make the pool easier to clean and maintain and provides a clean, defined boundary for the pool.

Gutterline Tile a.k.a. Gutter Lip Tile or Gutter Trim Tile

The gutter lip shall be tiled with a minimum of 2-inch tile on the pool wall, each a minimum size of 1 inch on all sides. All tile used on the flat, horizontal part, or the leading edge of an open-type gutter, must be slip resistant.

Step Tile a.k.a Step Trim Tile or Step Cap Tile

Gutterline Tile a.k.a. Gutter Lip Tile or Gutter Trim Tile

The front 3/4 to 2 inches (19.1 to 51 mm) of the tread and the top 2 inches (51 mm) of the riser shall be tile, dark in color, contrasting with the interior of the pool. Tile shall be slip resistant. Bullnose tile that is slip resistant may be used when the 3/4-inch (19 mm) segment is placed on the tread or horizontal surface and the 2-inch (51 mm) segment is placed on the riser or vertical surface.

Depth Marker Tile

Slope Break Tile a.k.a. Belly Band Tile

Depth Marker Tile

Permanent depth markings followed by the appropriate full or abbreviated words “FEET,” “FT,” or “INCHES,” “IN,” shall be installed in minimum 4-inch-high numbers and letters on a contrasting background. Depth markers shall indicate the actual pool depth, within 3 inches, at normal operating water level when measured 3 feet from the pool wall. At a minimum, the markings shall be located on both sides of the pool at the shallow end, slope break, deep-end wall and deep point (if located more than 5 feet from the deep-end wall). Depth markings shall be legible from inside the pool and also from the pool deck. The maximum perimeter distance between depth markings is 25 feet.

No Diving Tile

Slope Break Tile a.k.a. Belly Band Tile

Depth Marker Tile

Areas of the pool that are not part of an approved diving bowl shall have dark contrasting tile, 4-inch-high “NO DIVING” markings installed along the perimeter of the pool on the top of the pool curb or deck within 2 feet of the pool water with a maximum perimeter distance of 25 feet between markings.

A 6-inch tile with a 4-inch or larger red, international “NO DIVING” symbol may be substituted for the “NO DIVING” markings. “NO DIVING” markings are not required within the swimming pool.

Slope Break Tile a.k.a. Belly Band Tile

Any transition in floor slope shall occur at a minimum of 5 feet of water depth.A slope transition must have a 2 to 6 inch wide dark contrasting tile marking across the bottom and must extend up both sides of the pool at the transition point. The marking shall be continuous except for recessing grouting.

Solid Color Tile with Matching Non-Skid Tile

*** Non-Skid Tile is Florida Building Code 2017 Compliant for Public (Commercial) Pools ***

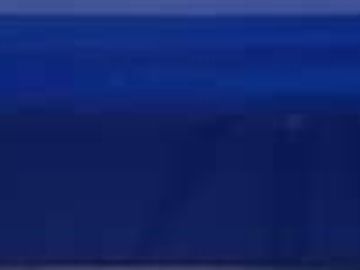

589 / SAPPHIRE TRIM STEP CAP GUTTER LEDGE TILE BULLNOSE MUDCAP ARTISTIC POOLS

SAPPHIRE BLUE

STANDARDGLOSSY FINISH

2"x6" SINGLE MUD CAP (A4200-589)

6"x6" SINGLE MUD CAP (A3602-589)

6"x6" FLAT / WALL / FIELD (589)

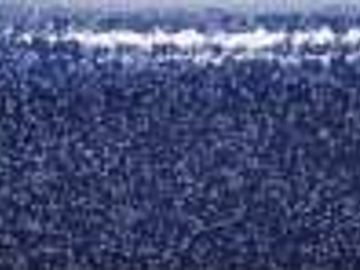

SAPPHIRE BLUE

STANDARD NON-SKID FINISH

2"x6" SINGLE MUD CAP (A4200-NS589)

6"x6" SINGLE MUD CAP (A3602-NS589)

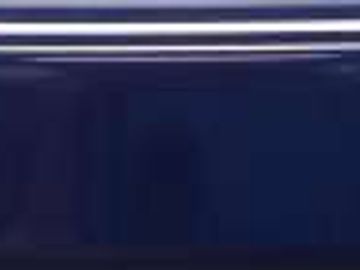

587 / COBALT TRIM STEP CAP GUTTER LEDGE TILE BULLNOSE MUDCAP ARTISTIC POOLS

COBALT BLUE

STANDARDGLOSSY FINISH

2"x6" SINGLE MUD CAP (A4200-587)

6"x6" SINGLE MUD CAP (A3602-587)

6"x6" FLAT / WALL / FIELD (587)

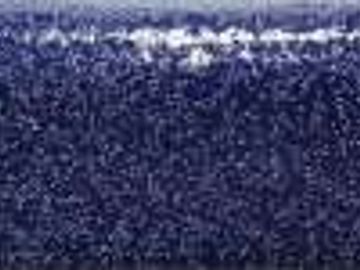

A42-NS587 / NON-SKID COBALT TRIM STEP CAP GUTTER LEDGE TILE BULLNOSE MUDCAP ARTISTIC POOLS

COBALT BLUE

STANDARD NON-SKID FINISH

2"x6" SINGLE MUD CAP (A4200-NS587)

6"x6" SINGLE MUD CAP (A3602-NS587)

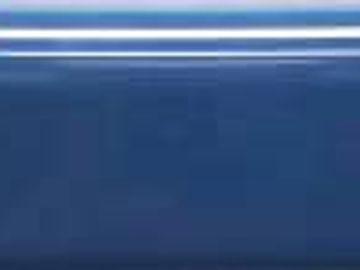

COLONIAL BLUE

STANDARD GLOSSY FINISH

2"x6" SINGLE MUD CAP (A4200-583)

6"x6" SINGLE MUD CAP (A3602-583)

6"x6" FLAT / WALL / FIELD (587)

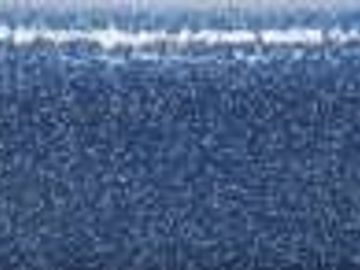

COLONIAL BLUE

STANDARD NON-SKID FINISH

2"x6" SINGLE MUD CAP (A4200-NS583)

6"x6" SINGLE MUD CAP (A3602-NS583)

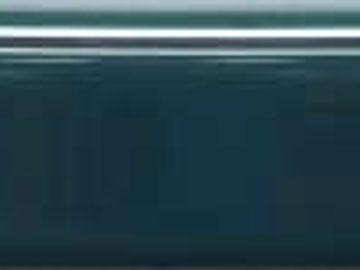

TEAL

STANDARD GLOSSY FINISH

2"x6" SINGLE MUD CAP (A4200-575)

6"x6" SINGLE MUD CAP (A3602-575)

6"x6" FLAT / WALL / FIELD (575)

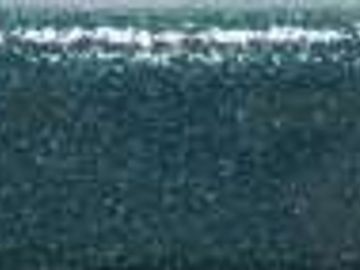

TEAL

STANDARD NON-SKID FINISH

2"x6" SINGLE MUD CAP (A4200-NS575)

6"x6" SINGLE MUD CAP (A3602-NS575)

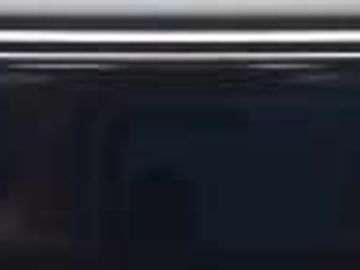

BLACK

STANDARD GLOSSY FINISH

2"x6" SINGLE MUD CAP (A4200-529)

6"x6" SINGLE MUD CAP (A3602-529)

6"x6" FLAT / WALL / FIELD (529)

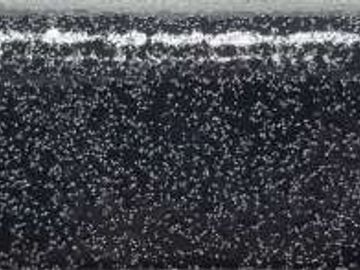

BLACK

STANDARD NON-SKID FINISH

2"x6" SINGLE MUD CAP (A4200-NS529)

6"x6" SINGLE MUD CAP (A3602-NS529)

Solid Color Tile without Matching Non-Skid Tile

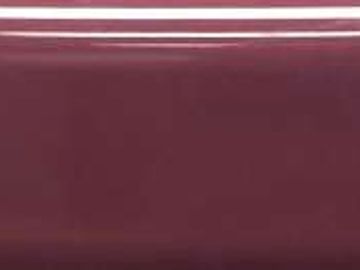

WINEBERRY

STANDARD GLOSSY FINISH

2"x6" SINGLE MUD CAP (A4200-567)

6"x6" SINGLE MUD CAP (A3602-567)

6"x6" FLAT / WALL / FIELD (567)

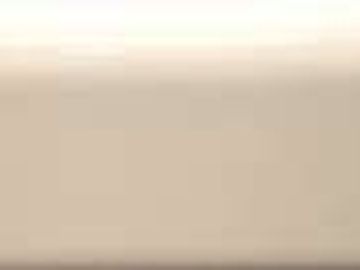

ALMOND

STANDARD GLOSSY FINISH

2"x6" SINGLE MUD CAP (A4200-114)

6"x6" SINGLE MUD CAP (A3602-114)

6"x6" FLAT / WALL / FIELD (114)

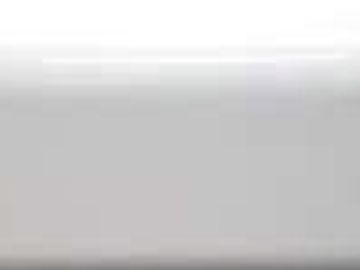

WHITE

STANDARD GLOSSY FINISH

2"x6" SINGLE MUD CAP (A4200-100 )

6"x6" FLAT / WALL / FIELD (100)

BONE

STANDARD GLOSSY FINISH

2"x6" SINGLE MUD CAP (A4200-110)

6"x6" FLAT / WALL FIELD (110)

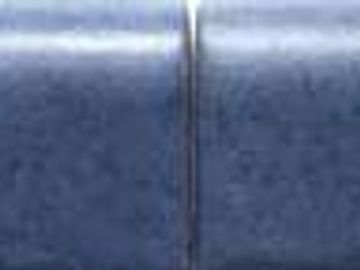

STONE BLUE

STANDARD STONE FINISH

2"x6" SINGLE MUD CAP (A4200-974)

6"x6" SINGLE MUD CAP (A3602-974)

6"x6" FLAT / WALL / FIELD (974)

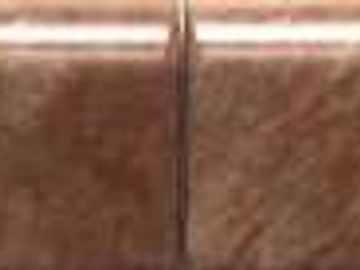

PRIMROSE

STANDARD STONE FINISH

2"x6" SINGLE MUD CAP (A4200-945)

6"x6" SINGLE MUD CAP (A3602-945)

6"x6" FLAT / WALL / FIELD (945)

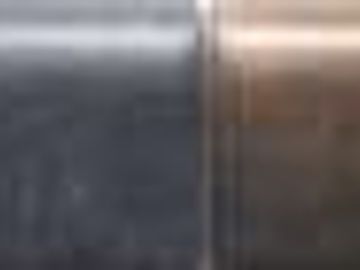

COAL

STANDARD STONE FINISH

2"x6" SINGLE MUD CAP (A4200-981)

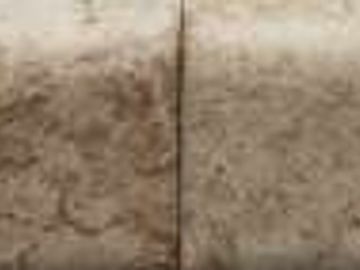

MONTREAUX BRUN

STANDARD STONE FINISH

2"x6" SINGLE MUD CAP (A4200-920)

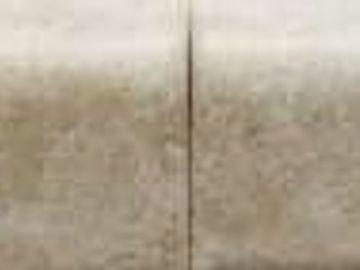

MONTREAUX BLANC

STANDARD STONE FINISH

2"x6" SINGLE MUD CAP (A4200-930)

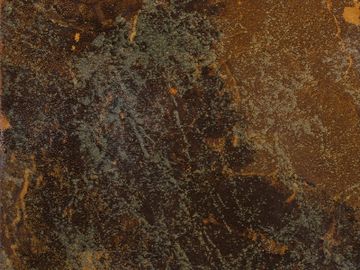

RUST

STANDARD STONE FINISH

2"x6" SINGLE MUD CAP (A4200-922)

SAHARA

STANDARD STONE FINISH

2"x6" SINGLE MUD CAP (A4200-964)

Swimming Pool & Spa Tile

Tile Materials

Tile Materials

Tile Materials

Tile Shapes

Tile Materials

Tile Materials

Tile Sizes

Tile Materials

Waterline Tile

Waterline Tile

Gutterline Tile a.k.a. Gutter Lip Tile or Gutter Trim Tile

Waterline Tile

Gutterline Tile a.k.a. Gutter Lip Tile or Gutter Trim Tile

Gutterline Tile a.k.a. Gutter Lip Tile or Gutter Trim Tile

Gutterline Tile a.k.a. Gutter Lip Tile or Gutter Trim Tile

Step Tile a.k.a Step Trim Tile or Step Cap Tile

Gutterline Tile a.k.a. Gutter Lip Tile or Gutter Trim Tile

Gutterline Tile a.k.a. Gutter Lip Tile or Gutter Trim Tile

Depth Marker Tile

Slope Break Tile a.k.a. Belly Band Tile

Depth Marker Tile

No Diving Tile

Slope Break Tile a.k.a. Belly Band Tile

Depth Marker Tile

Slope Break Tile a.k.a. Belly Band Tile

Slope Break Tile a.k.a. Belly Band Tile

Slope Break Tile a.k.a. Belly Band Tile

Standard 6" x 6" Flat (Field) Porcelain Glossy Waterline Tile

Standard 6" x 6" Flat (Field) Porcelain Stone-Look Waterline Tile

Solid Color Tile with Matching Non-Skid Tile

SAPPHIRE BLUE

SAPPHIRE BLUE

COBALT BLUE

COBALT BLUE

COLONIAL BLUE

COLONIAL BLUE

TEAL

TEAL

BLACK

BLACK

Non-Skid Tile without Matching Solid Color Tile

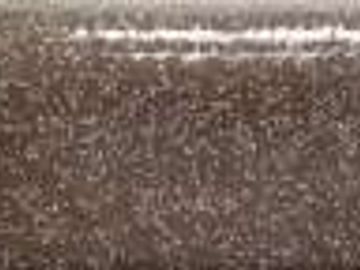

BROWN KISS

Solid Color Tile without Matching Non-Skid Tile

WINEBERRY

ALMOND

WHITE

BONE

STONE BLUE

PRIMROSE

COAL

MONTREAUX BRUN

MONTREAUX BLANC

RUST

SAHARA

Bermuda Style | Blue Seas Style | Boardwalk Style

BERMUDA BLUE

BLUE SEAS LIGHT BLUE

BLUE SEAS ROYAL BLUE

BLUE SEAS RUSTIC BLUE

BLUE SEAS TEAL BLUE

BOARDWALK OCEAN

Caldera Style | Islands Style | Granito Style | Marblestone Style

CALDERA BLUE AGATE

CALDERA BLUE AZURITE

CALDERA MOONSTONE

ISLANDS OCEAN BREEZE

GRANITO AZUL DEL MAR

GRANITO BAHIA BLUE

GRANITO DOLOMITE GRAY

GRANITO PIEDRA MULTICOLOR

MARBLESTONE BLUE MARBLE

MARBLESTONE GRAY MARBLE

MARBLESTONE BLUE GRAY PATTERN

Oceans Style | Seven Seas Style

OCEANS AQUA

OCEANS BLUE

OCEANS COBALT

OCEANS MARINE

SEVEN SEAS LAKE BLUE
